Technology Parameters
|
|
Items
|
MDZLP800
|
|
Rated loading capacity
|
800 KG
|
|
Lifting speed
|
8.5m/min
|
|

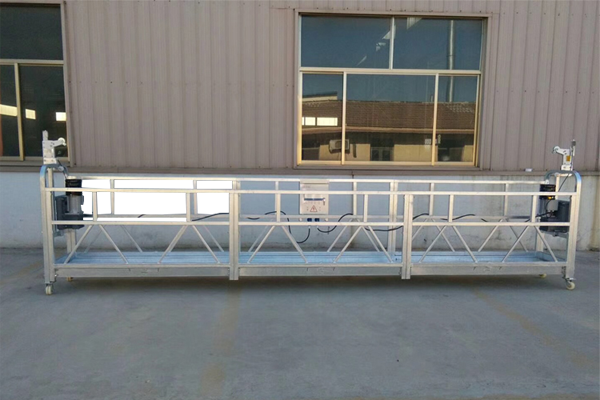

Suspension platform size (L x W)
|
（2.5m+2m+1.5m）x0.69m x 1.22m
|
|
Steel wire rope
|
Structure: 25kg*4 Diameter8.6mm Breaking force is greater than or equal to 5.3kn
|
| Cable conductor |
3*2.5+2*1.5 YC-5 |
|
Elevator
|
Model
|
LTD800
|
|
Hoisting form
|
“S”shape
|
|
rated lifting force
|
8 KN
|
|
Motor
|
Model
|
LTD400
|
|
Power
|
1.8 KW
|
|
Voltage
|
AC 380V
|
|
Braking torque
|
15 N.m
|
|
Security lock
|
Type
|
Swing arm type anti tilt
|
|
Model
|
LSF30
|
|
Locking Cable Angle
|
3°~ 8°
|
|
Allowable impact force
|
30kn
|
|
Suspension mechanism
|
Quantity
|
2 sets
|
|
adjustable height
|
1.15-1.75 m
|
|
Front beam overhang
|
1.1m - 1.5 m
|
|
Quantity
|
Suspension platform
|
160kg
|
|
Elevator
|
52kg*2
|
|
safety lock
|
5.5kg*2
|
|
Electric control box
|
18kg
|
|
suspension mechanism
|
320 kg(Without counterweight)
|
|
Whole machine
|
870kg
|
|
Hanging basket normal working environment
|
Environment temperature-20°C- +40°C
|
|
Environment relative humidity≤90%（25°C）
|
|
Power supply voltage deviation rating±5%
|
|
Essence of gust wind acuities were 8.3 m/s wind (equivalent to level 5)
|
