Movable Lift Platform

BRAND:Meida

Safe working load: 500kg-2000kg

Max working height: 6-20m

Max lifting height: 4-18m

Products List

Self-propelled scissor lift Stationary Scissor Lift Platf Movable Lift Platform Alloy Lift Platform Dock Leveler Self-Propelled Mast Lift Vertical Lead Rail Lift Platf Wheelchair Lift Platform Yard Ramp Articulating Boom Lifts

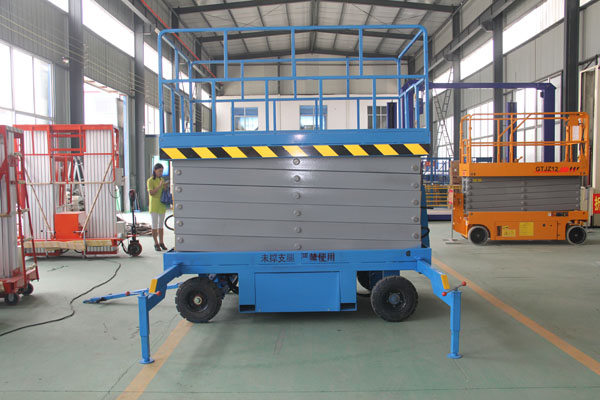

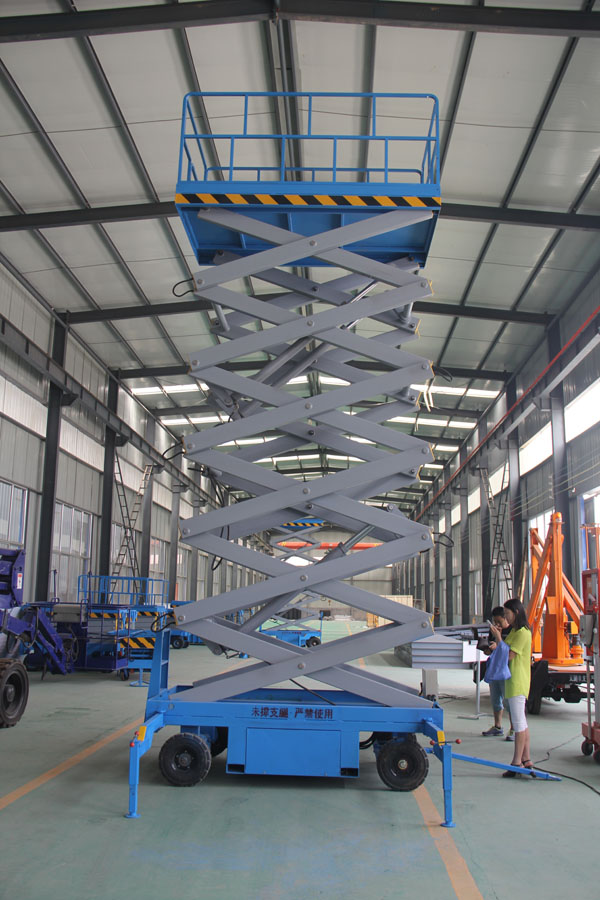

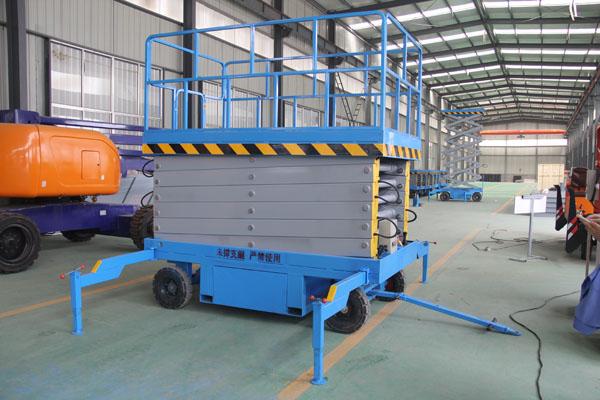

Movable Scissor Lift

1.The equipment is mainly used to lift workers to higher places for maintenance, cleaning or installation.

2.An ideal equipment of sage operation.

3.It is characterized by great loading capacity. It can be design as you request.

4.Steady ascending and descending.

5.Mobile convenient, easy to work.

6.Local voltage can be customerized (110V,220V, 380V, 415V)

7.Lift power: AC, DC or diesel available.

Fetures

1. Explosion-proof valves: Protect hydraulic pipe, anti-hydraulic pipe rupture.

2. Spillover valve: It can prevent high pressure when the machine movers up. Adjust the pressure.

3. Emergency decline valve: It can go down when you meet an emergency

4. Phase lack & phase dislocation protection.

Model Numbe	Rate load			Maximum height(mm)		Minimum heigt(mm)		table size(mm) L*W		Rise time(s)		Power		Weight(kg)
	(kg)											(kw)
MDS0.45-3	450			3000		850		1400×700		16		1.1		400
MDS0.45-5	450			5000		950		1400*850		43		1.1		620
MDS0.3-6	300			6000		950		1800×880		49		1.1		650
MDS0.45-6	450			6000		950		1800×880		54		1.1		650
MDS0.45-7.5	450			7500		1350		1800×1000		72		1.5		1100
MDS0.3-9	300			9000		1500		1800*1000		75		1.5		1200
MDS0.45-9	450			9000		1550		1800×1000		80		1.5		1260
MDS0.3-11	300			11000		1600		2100×1150		83		1.5		1320
MDS0.45-11	450			11000		1600		2100×1150		88		2.2		1380
MDS0.3-12	300			12000		1750		2450×1350		85		2.2		1700
MDS0.45-12	450			12000		1600		2450×1350		90		3		1850
MDS0.3-14	300			14000		1800		2450×1350		98		3		2200
MDS0.45-14	450			14000		1800		2450×1350		120		3		2500
MDS0.3-16	300			16000		1980		2750*1500		130		3		2200

Model Numbe	Rate load			Maximum height(mm)		Minimum heigt(mm)		table size(mm) L*W		Rise time(s)		Power		Weight(kg)
	(kg)											(kw)
MDS0.45-3	450			3000		850		1400×700		16		1.1		400
MDS0.45-5	450			5000		950		1400*850		43		1.1		620
MDS0.3-6	300			6000		950		1800×880		49		1.1		650
MDS0.45-6	450			6000		950		1800×880		54		1.1		650
MDS0.45-7.5	450			7500		1350		1800×1000		72		1.5		1100
MDS0.3-9	300			9000		1500		1800*1000		75		1.5		1200
MDS0.45-9	450			9000		1550		1800×1000		80		1.5		1260
MDS0.3-11	300			11000		1600		2100×1150		83		1.5		1320
MDS0.45-11	450			11000		1600		2100×1150		88		2.2		1380
MDS0.3-12	300			12000		1750		2450×1350		85		2.2		1700
MDS0.45-12	450			12000		1600		2450×1350		90		3		1850
MDS0.3-14	300			14000		1800		2450×1350		98		3		2200
MDS0.45-14	450			14000		1800		2450×1350		120		3		2500
MDS0.3-16	300			16000		1980		2750*1500		130		3		2200
